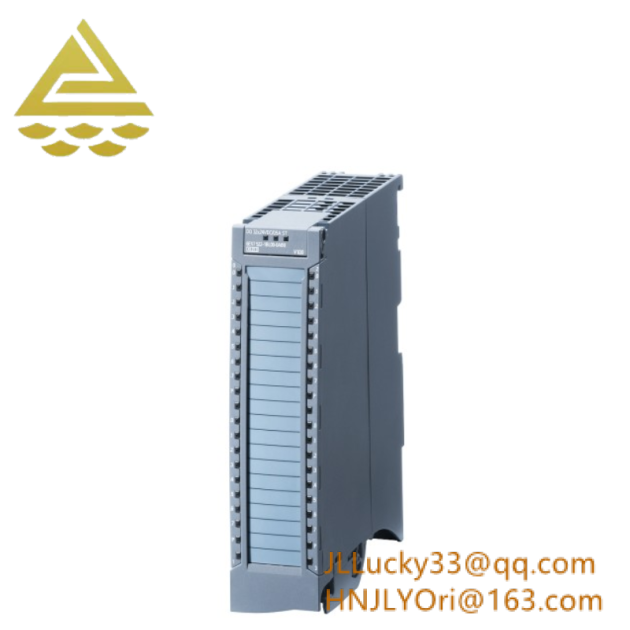

SIEMENS SIMATIC 6ES7522-5HH00-0AB0 Digital Output Module: Precision Control at the Core of Industry Automation

Model Type:Digital Output Module

Model Number:6ES7522-5HH00-0AB0

Manufacturer:SIEMENS

Net Weight:0.339 kg

Packaging Dimension:14.90 x 15.30 x 4.30 cm

Power Supply:230V 1 phase / 460V 3 phase

Channels:8x24V DC

Current Rating:0.5 A per channel

Max. Frequency:600 Hz

Protection Level:Complete

Diagnosis:Short-circuit to L+, Ground, Wire Break, Supply Voltage

Dimensions:Standard DIN rail mount

Connectivity:Single-channel diagnostics, front connector (screw terminals or push-in)

Lifecycle:Active (PM300)

    The SIEMENS 6ES7522-5HH00-0AB0 digital output module is engineered for high reliability and efficiency, making it an ideal choice for industrial automation applications. It offers 32 channels in groups of 8, providing flexibility to manage various control scenarios.

    Featuring a modular and compact design, this module integrates seamlessly into existing systems, ensuring minimal disruption during installation and maintenance. Its built-in PLC function enhances its operational capabilities, making it a versatile component in complex automation setups.

    With an optional fieldbus module compatibility (such as DeviceNet, Profibus, LonWorks, and CANopen), the module can easily connect to a wide range of automation networks, facilitating data exchange and control across different devices.

    For enhanced safety and performance, this digital output module includes an RFI-switch for mains, which helps in protecting against radio frequency interference. Additionally, it offers flexible extension options and complete protection, ensuring robust operation under various environmental conditions.

    Equipped with single-channel diagnostics, the module allows for real-time monitoring of status and alerts on potential issues such as short-circuits, ground faults, and supply voltage irregularities, enabling proactive maintenance and minimizing downtime.
