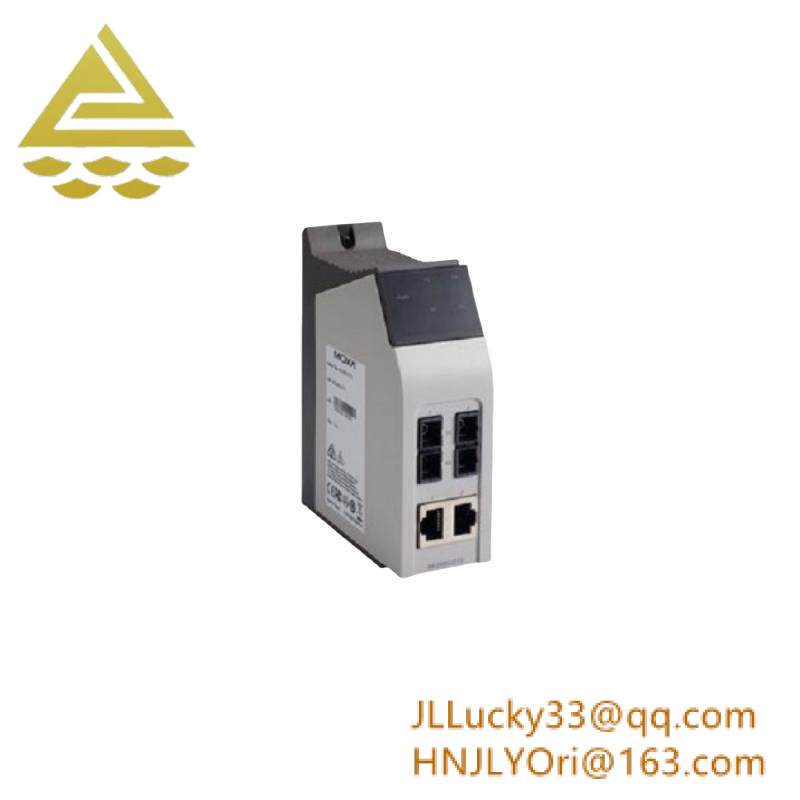

MOXA IM-2MSC/2TX – High-Speed Ethernet Interface Module for Industrial Control Systems

Total Ethernet Ports:4

Type 10/100 Mbit/s:2x RJ45, Auto MDI/MDIX

Connection Accessories:N/A

External Transceiver:N/A

Module Width:Dual Slot

Weight:0.1 kg

Operating Temperature Range:-40°C to 75°C

Storage Temperature Range:-40°C to 85°C

Humidity Range (Non-condensing):5% to 95%

Power Supply:24VDC, 5W

Communication Protocol:TCP/IP, UDP, FTP, HTTP, SNMP, Modbus/TCP

Dimensions (W x H x D):125mm x 95mm x 33mm

Mounting Configuration:Panel mount

    The MOXA IM-2MSC/2TX Ethernet interface module is engineered to withstand harsh industrial environments, offering a robust solution for real-time data exchange.

    Featuring a compact and durable design, it supports a wide operating temperature range, making it suitable for applications in extreme conditions.

    With its 100 Mbps data transfer rate, the module ensures fast and efficient communication, crucial for optimizing industrial processes.

    Supporting various protocols like TCP/IP, UDP, FTP, and HTTP, this module provides flexibility in integrating with different systems and devices.

    Equipped with a M12 connector, it offers a secure connection, reducing the risk of disconnections in demanding environments, thus enhancing reliability and uptime.
