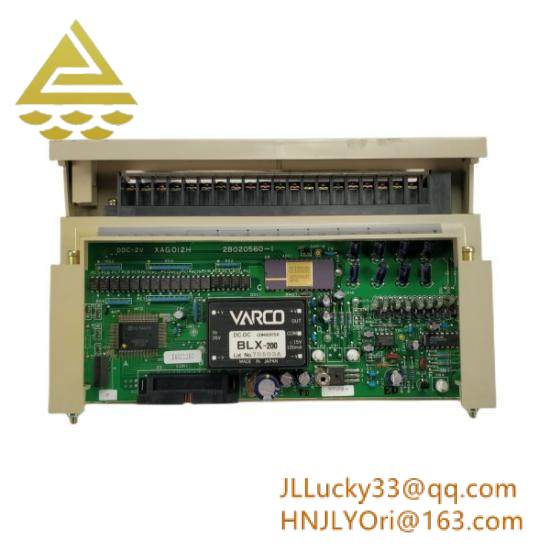

Hitachi XAGC12H XAGC12HC Analog Input Module

Type:Analog Input Module

Model:XAGC12H-XAGC12HC

Operating Voltage:10-30V DC

Current Consumption:≤20mA

Input Range:±10V, ±5V, 0-10V, 0-20mA

Resolution:12-bit ADC

Environmental Conditions:Operating Temperature: -20°C to +60°C, Storage Temperature: -40°C to +85°C

Connectivity:12-channel, screw terminal connections

Communication:RS-485, Modbus-RTU compatible

Protection:IP20 enclosure, CE certified

    The Hitachi XAGC12H-XAGC12HC Analog Input Module is engineered to meet the demanding requirements of industrial automation environments. Its robust design ensures accurate and stable signal conversion across a wide range of applications, from process control to monitoring systems.

    With its 12-channel configuration, this module provides flexibility in connecting various sensors and devices. It supports multiple input ranges, including ±10V, ±5V, 0-10V, and 0-20mA, catering to diverse measurement needs in different industries.

    Featuring a high-resolution 12-bit Analog-to-Digital Converter (ADC), the module delivers exceptional precision and low noise levels, ensuring reliable data acquisition under varying environmental conditions. Its wide operating temperature range (-20°C to +60°C) and storage conditions (-40°C to +85°C) make it suitable for use in extreme industrial settings.

    The XAGC12H-XAGC12HC is equipped with screw terminal connections for easy installation and compatibility with standard wiring practices. It supports RS-485 communication, enabling seamless integration with other devices and systems using Modbus-RTU protocol.

    To enhance user convenience and safety, the module is enclosed in an IP20-rated case, providing basic protection against dust and splashes. Additionally, it carries the CE mark, confirming compliance with European safety standards.
