Model:IS200TREGH1BDC
Category:Termination Board
Manufacturer:General Electric
Application:Mark VI Turbine Control Systems
Power Supply:AC
Input Voltage:24V DC
Output Voltage:5V DC
Operating Temperature Range:-20°C to +60°C
Storage Temperature Range:-40°C to +70°C
Dimensions (WxHxD):178mm x 114mm x 59mm
Weight:0.5kg

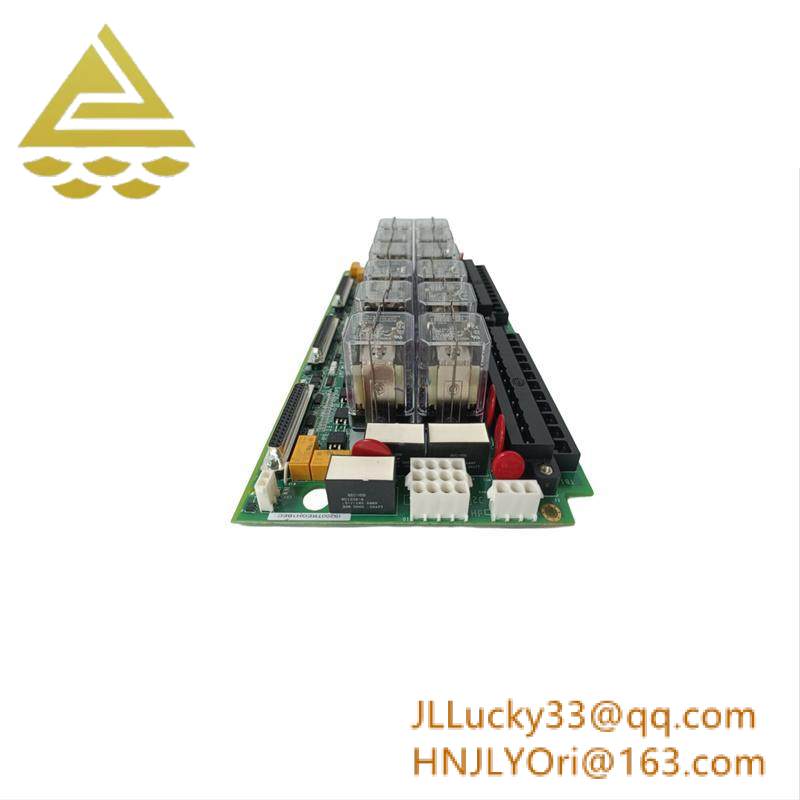

Integrating state-of-the-art technology, the General Electric IS200TREGH1BDC Termination Board is engineered for high reliability and robust performance in demanding industrial environments. Its compact design ensures seamless integration into existing systems, enhancing overall system stability and efficiency.
Featuring a total of three (3) black variable resistors or potentiometers at the top right, this board offers fine-grained control over system parameters. The precision-engineered components guarantee accurate adjustments and response times, crucial for maintaining optimal operational conditions.
Sitting along the right border are a group of three (3) jack connector ports, each containing a collection of small pin ports. These facilitate secure connections to various system components, ensuring data integrity and efficient communication across the network.
Four (4) large capacitors, positioned strategically in two (2) distinct areas on the right side, provide essential energy storage capabilities. Their solid yellow color and rectangular shape indicate their robust construction and long-lasting performance, crucial for maintaining system stability under varying operational demands.
Specifically designed for use in steam and gas turbines, this termination board supports the latest advancements in turbine control systems. Its compatibility with General Electric’s Mark VI series ensures compatibility with cutting-edge technology, offering unparalleled performance and reliability in industrial settings.
