Model Number:DS3800HPTK
Manufacturer:General Electric
Application:Turbine Control Systems
Resistors:15 long grey resistors, 18 Ohms ±5%, 10W rating
Color-coded Resistors:10 additional resistors with color bands
Diodes:13 various colored diodes
Capacitors:3 capacitors ranging from small to large
Fuse:Large glass fuse
LED:Small red LED
Potentiometer:Small blue potentiometer or variable resistor
Contact Points:Eight contact points between rows

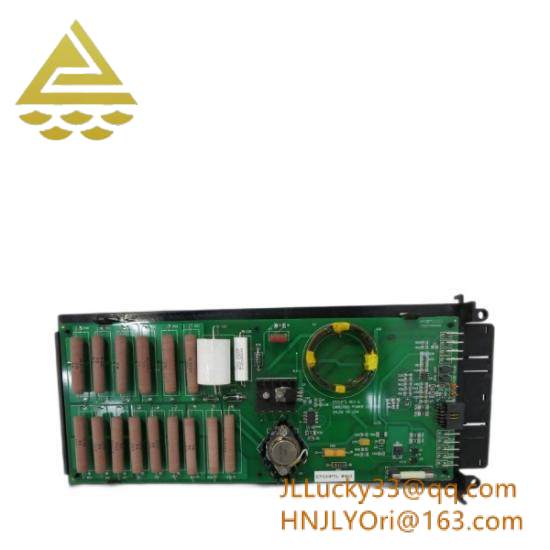

The DS3800HPTK Gate Driver Card is a specialized component designed for use within the Mark IV Speedtronic series of turbine control systems. This card is engineered to provide reliable power conversion, ensuring smooth operation of critical machinery. Featuring fifteen long grey resistors rated at 18 Ohms with a tolerance of ±5% and a power rating of 10 Watts, this board can handle significant electrical loads.
In addition to the resistors, the DS3800HPTK includes ten other resistors color-coded to indicate their current capacity. Thirteen various colored diodes are also present, which help in signal processing and protection. The card is equipped with three capacitors of varying sizes, allowing for effective energy storage and filtering. A large glass fuse and a small red LED indicator further enhance the safety and visibility of the system status. Lastly, a small blue potentiometer offers adjustable resistance for fine-tuning the board’s performance.
Designed for easy installation, the DS3800HPTK comes with two screw points and two plastic clips for secure attachment. The board is clearly marked with its circuit board number, the manufacturer’s logo (GE), and the place of manufacture. With its robust design and reliable performance, the DS3800HPTK Gate Driver Card is an indispensable component for any Mark IV Speedtronic turbine control system.
