Manufacturer:General Electric
Model:DS200CTBAG1A
Product Type:Analog Termination Module
Compatibility:GE Mark V Turbine Control System
Board Dimensions:Various dimensions fitting the core
Connectors:Two COREBUS connectors (JAI and JAJ), multiple double-stack terminal strips, vertical pin connectors, and more
Mounting Options:Drilled corners for secure mounting
Certifications:Compliant with relevant industrial standards
The DS200CTBAG1A Analog Termination Module is an essential component of the General Electric Mark V Turbine Control System, providing a robust connection point for analog signals.
This module includes two COREBUS connectors (JAI and JAJ) which facilitate seamless communication between different system components.

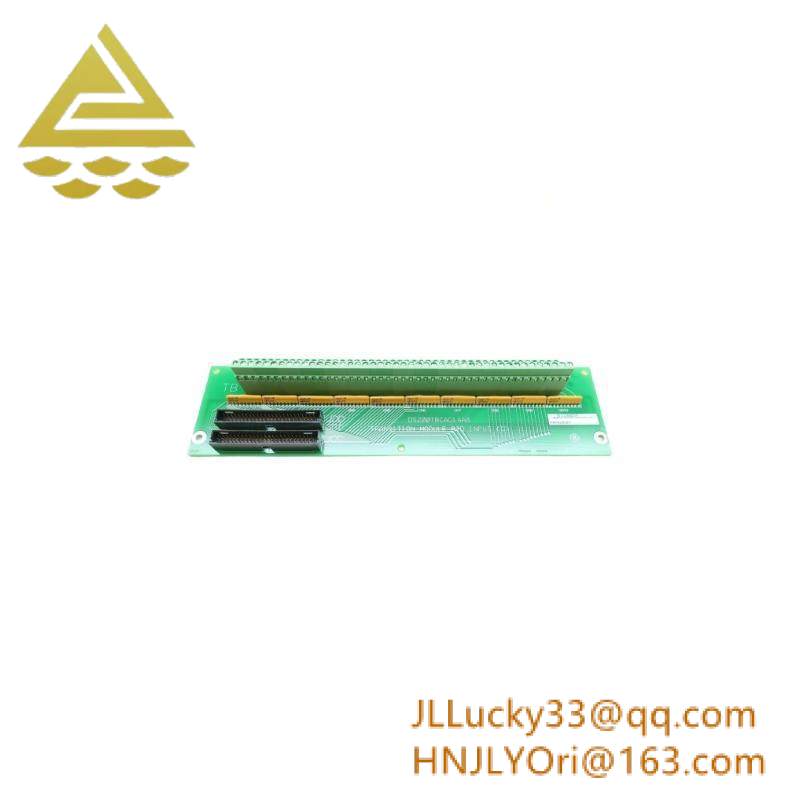

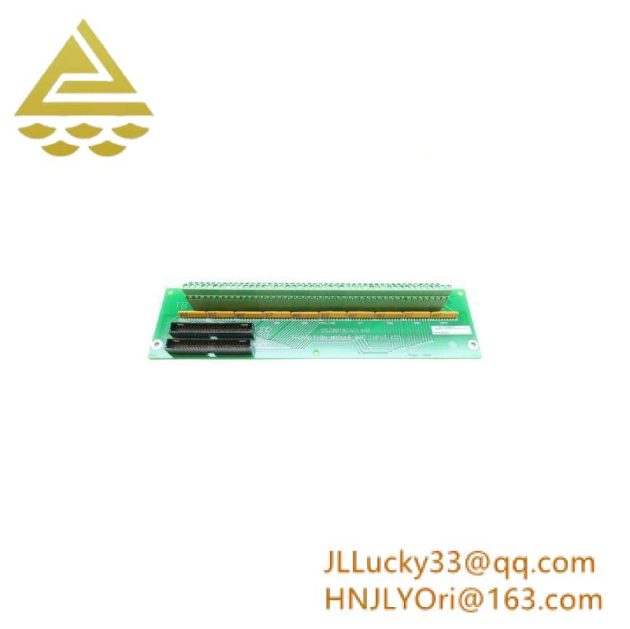

The board features double-stack terminal strips on one long board edge, enhancing its versatility and ease of use.
With multiple connectors on each terminal strip, the DS200CTBAG1A ensures efficient signal transmission and distribution.
Designed for reliability, this module is marked with the General Electric logo and is equipped with safety measures such as conductive material around drill holes for voltage protection.
