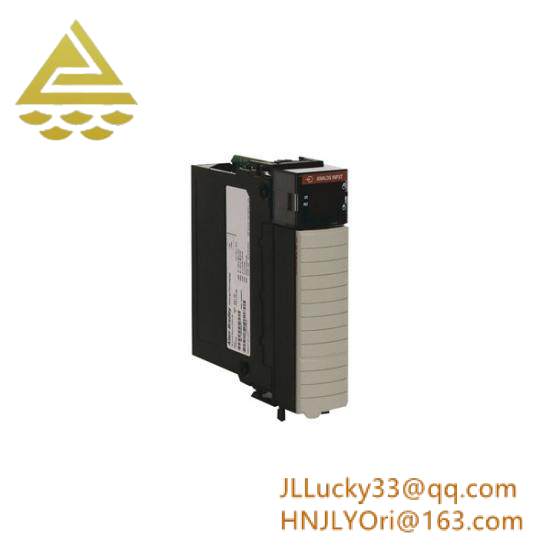

Allen-Bradley 1756-MVI Interface Module, ControlLogix, Networking, Modular

Model Type:Interface Module

ControlLogix:Yes

Networking Capability:Yes

Modular Design:Yes

Application Compatibility:ControlLogix Systems

Communication Protocol:Ethernet/IP

Data Transfer Rate:10/100 Mbps

Port Configuration:Ethernet Configuration and Application Port

Module Data Memory:Up to 5000, 16-bit Registers

Software Support:ProSoft Configuration Builder (PCB) Software

Web Interface:Internal Web

Environmental Conditions:Temperature Rating: 0 – 60 DEG C, 5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

Vibration Resistance:2 G

Interface Type:Ethernet

USB Port:Not Applicable

Power Supply:3 MA at 24 VDC

Enclosure Type:Open Type

Mounting:Chassis

Communication Speed:10/100 MBPS

    The Allen-Bradley 1756-MVI ControlNet Interface Module is a critical component for industrial automation systems, seamlessly connecting ControlLogix PLCs to ControlNet networks, enhancing system performance and reliability.

    This module is backward compatible with earlier versions, ensuring compatibility and ease of integration into existing systems without compromising on functionality.

    Equipped with auto crossover detection for Ethernet configuration, it simplifies setup and ensures efficient data transfer rates, optimizing network performance.

    With the capability to map up to 5000 16-bit registers, the 1756-MVI provides ample storage for various data types, accommodating diverse automation requirements.

    The ProSoft Configuration Builder (PCB) software supports a user-friendly graphical interface for quick and easy configuration, streamlining the process of setting up and managing your network connections.

    Comprehensive documentation, including sample ladder logic and Add-On Instructions (AOI), ensures smooth integration and efficient troubleshooting, maximizing operational efficiency.
