Operating Voltage Range:12 to 60 VDC
Sampling Rate:Up to 100 kHz
Input Resolution:12-bit ADC
Accuracy:+/- 0.1% of Full Scale
Power Consumption:Less than 50 mW
Environmental Conditions:Operating temperature: -20°C to +70°C, Storage temperature: -40°C to +85°C
Dimensions:139 mm x 111 mm
Connectivity:1 x DeviceNet, 1 x EtherNet/IP, 1 x Modbus/TCP
Mounting:Panel Mount

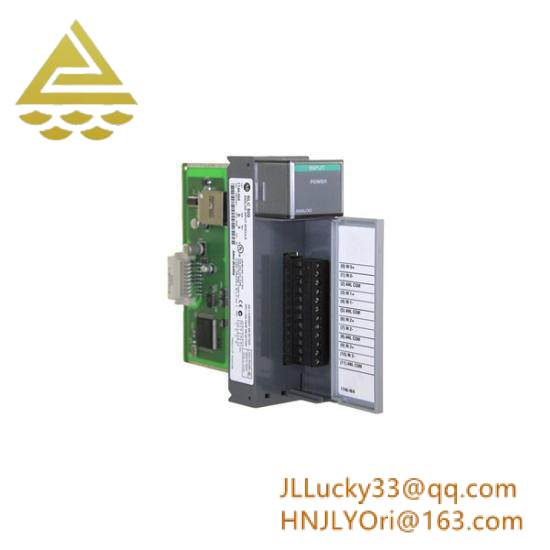

The Allen Bradley 1746-NI4/A Analog Input Module is specifically engineered for demanding industrial environments, ensuring reliability and precision in critical applications.
With its robust design, this module can handle common mode voltage ranges from -20 to 20 V, providing flexibility for a wide range of industrial needs.
Featuring 4 high-resolution channels, it enables accurate measurement and control, crucial for maintaining operational efficiency and quality standards.
The absolute input voltage capability of plus/minus 7.5 VDC or 7.5 VAC RMS ensures compatibility with various power sources, enhancing the module’s versatility.
The 1 LSB input range ensures minimal error margins, making it ideal for applications requiring high accuracy and precision.
The backplane current draw at 5 V is 35 MA, and at 24 V, it’s 85 MA, providing sufficient power without overloading the system. The open-type enclosure facilitates easy installation and maintenance.
