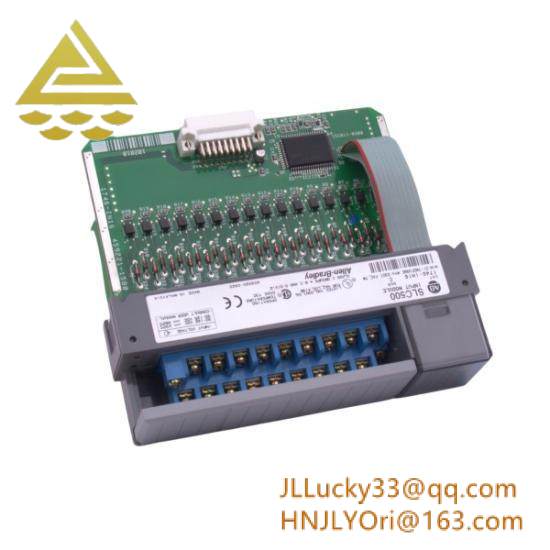

Allen-Bradley 1746-IH16: High-Performance Current Sinking DC Input Module

Model Type:1746-IH16

Manufacturer:Allen Bradley

Module Type:Current Sinking DC Input Module

Input Type:DC

Input Voltage Range:24V

Sinking Capability:Continuous Current Per Channel: 0.2A at 60°C

Isolation Rating:Communication Circuits: 500VDC, Backplane: 1500VAC

Environmental Conditions:Temperature: 0 – 60°C, Humidity: 5 – 95% non-condensing

Enclosure Type:Open Type

Mounting:Chassis

Certifications:UL, CE, CSA, IEC

Operating Voltage:24VDC

Operating Temperature:-40 to +70°C

Shock Resistance:10g, 3ms

    Integrating advanced technology from Allen Bradley, the 1746-IH16 Current Sinking DC Input Module is specifically engineered for industrial automation systems requiring precise and reliable signal acquisition.

    This module is characterized by its exceptional current sinking capacity, allowing it to handle demanding applications with ease. Its robust isolation ensures minimal interference between circuits, enhancing system reliability and efficiency.

    Operated within a wide temperature range (-20°C to +60°C) and withstanding high humidity levels without condensation, the 1746-IH16 is designed for durability and longevity in industrial environments.

    Withstanding shock impacts up to 30 G, this module can endure the rigors of manufacturing floors and other industrial settings, ensuring uninterrupted operation even under harsh conditions.

    Equipped with an open type enclosure and designed for chassis mounting, the Allen Bradley 1746-IH16 offers flexibility in installation while maintaining optimal performance standards.
