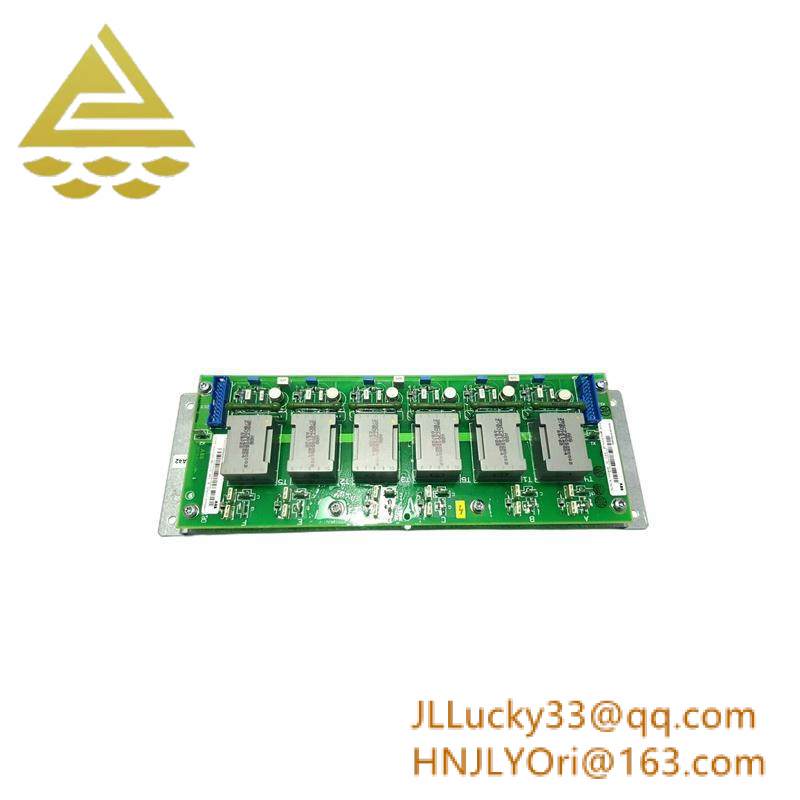

ABB SDCS-PIN-48 3BSE004939R0002 – High-Frequency Pulse Transformer Board, Engineered for Precision Control Applications

Series:SDCS-PIN-48

Model:3BSE004939R0002

Weight:0.2kg

Operating Voltage Range:24V DC

Current Rating:50mA

Frequency Response:5Hz – 2kHz

Pulse Generation Capacity:Up to 1kHz

Connection Type:Standard industrial connector

Material:High-grade aluminum alloy

Certification:CE, UL

    Engineered for precision, the ABB SDCS-PIN-48 3BSE004939R0002 Pulse Transformer Board delivers exceptional performance in high-frequency pulse applications, essential for advanced industrial automation.

    Featuring a compact aluminum alloy construction, this transformer board ensures robust durability and efficient heat dissipation in challenging industrial environments.

    With its wide input voltage range of 120-240 V AC, the board is compatible with various power sources, ensuring seamless integration into diverse automation setups.

    Capable of generating pulses up to 10 kHz with a maximum current of 10 A, it provides the precise timing and control needed for complex process control and synchronization tasks.

    Operating within a temperature range from -20°C to +55°C, this board is suitable for extreme conditions, guaranteeing reliable operation across various industrial settings.

    Equipped with a DIN rail mounting system, installation is quick and easy, minimizing downtime during setup or maintenance procedures.
