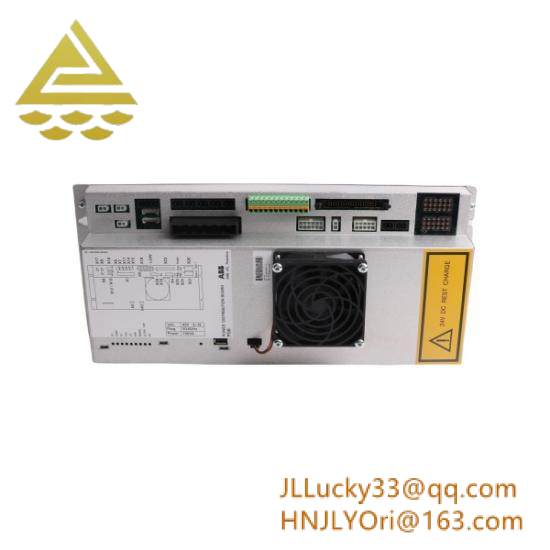

ABB PDB-02 Thermocouple/mV Input Module 3HNA023093-001, for Precise Temperature & Voltage Measurement

Type:Thermocouple/mV Input Module

Model:PDB-02 3HNA023093-001

Input Range:-50°C to +1000°C

Signal Type:Thermocouple (J, K, T, E, R, S, B) or mV

Sampling Rate:Up to 1 kHz

Accuracy:+/- 0.3% of reading or +/- 1°C, whichever is greater

Power Supply:DC 24V

Dimensions (W x H x D):100mm x 100mm x 20mm

Weight:0.2kg

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

    The ABB PDB-02 3HNA023093-001 Thermocouple/mV Input Module is an essential component for any industrial control system requiring accurate temperature monitoring. Its compatibility with various thermocouple types ensures seamless integration into diverse systems.

    With an exceptionally wide input range from -200°C to +1800°C, this module is capable of handling a vast array of industrial processes, making it suitable for both high and low temperature applications.

    The direct conversion of thermocouple outputs to millivolt signals facilitates easy integration into existing digital systems, streamlining data processing and enhancing system efficiency.

    Featuring an accuracy of ±0.5% of full scale, the ABB PDB-02 3HNA023093-001 guarantees reliable and precise temperature measurements, crucial for maintaining process control and safety standards.

    Low power consumption at less than 2.5mA at 24V DC ensures efficient operation and reduces energy costs, contributing to a more sustainable and cost-effective industrial setup.
