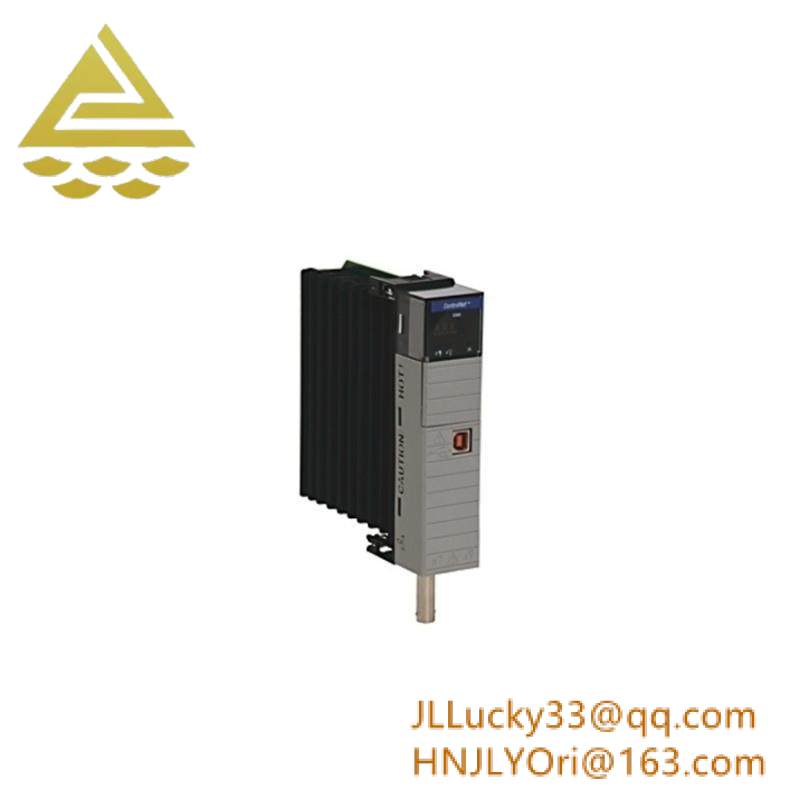

AB 1756-CN2/C – ControlNet Interface Module

Manufacturer:Allen-Bradley

Model:1756-CN2/C

Interface:ControlNet

Communication Speed:10/100 Mbps

Protocol:Ethernet/IP

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Enclosure Type:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

    The AB 1756-CN2/C Controlnet Interface Module is engineered to ensure robust and reliable communication between ControlLogix systems and ControlNet networks, supporting the efficient operation of industrial automation systems.

    Featuring a high-speed Ethernet/IP interface, this module ensures fast data transfer rates and seamless integration, making it ideal for complex industrial environments where high performance and reliability are paramount.

    With its open-type enclosure and shielded/unshielded connection cables, the module is designed to withstand harsh industrial conditions, ensuring longevity and minimal downtime.

    Capable of operating within a wide temperature range from 0 to 60 degrees Celsius, this module is suitable for diverse industrial settings, from cold warehouses to hot production floors.

    Providing 5.1 watts of power dissipation with continuous isolation of 30 volts, the AB 1756-CN2/C ensures stable operation and safety in industrial applications.
